Plexiglass Variants

A modular plexiglass fascia system for Electropeyk's 502-MTV video door phone, giving one base unit fifteen selectable surface variants without touching the underlying hardware.

RoleIndustrial Designer

ToolsRhino, Illustrator, Photoshop

CompanyElectropeyk, R&D Department

Place, DateTehran, Iran, 2014

Grid of 502-MTV video door phone screens shown at an angle, each with a different plexiglass fascia variant

01, Context & Challenge

One hardware platform, a crowded shelf

The 502 MTV was Electropeyk's entry-level video door phone, launched in 2013. As the market expanded and competition increased, the company needed to extend its product range without redesigning the underlying hardware. The existing plexiglass fascia was perceived as outdated and no longer competitive at the point of sale.

The product required a visual refresh that could differentiate it in a crowded market without altering the hardware. The challenge was to create multiple distinct surface variants from a single base unit, offering customers meaningful choice while keeping manufacturing complexity low. A black version of the unit was already available as an option, and this plexiglass system was developed to extend that approach across a wider range of colors and styles.

InternshipConcept → Prototype

Product Line592 Video Door Phone

02, Design Approach

Five designs, three colors, one interface

Five plexiglass face designs were developed across three base body colors, white, black, and gray. Each variant explores a different combination of color, surface treatment, and graphic language, while maintaining a consistent button layout and interface logic. The designs range from minimal monochromatic surfaces to two-tone compositions with accent panels, addressing different price levels and aesthetic preferences within a single product family.

5 designs × 3 RAL colors, 15 selectable variants.

RAL 7042 Traffic Grey A

RAL 9003 Signal White

RAL 9005 Jet Black

RAL 7021 Black Grey

RAL 7047 Telegrey 4

RAL 7016 Anthracite Grey

03, Variant Gallery

Three of the fascia designs

Each design keeps the same button positions and circular navigation ring, but reworks the surface graphics around it, from a simple radial dial, to a hexagonal button cluster, to a rounded shield panel that frames the screen and branding.

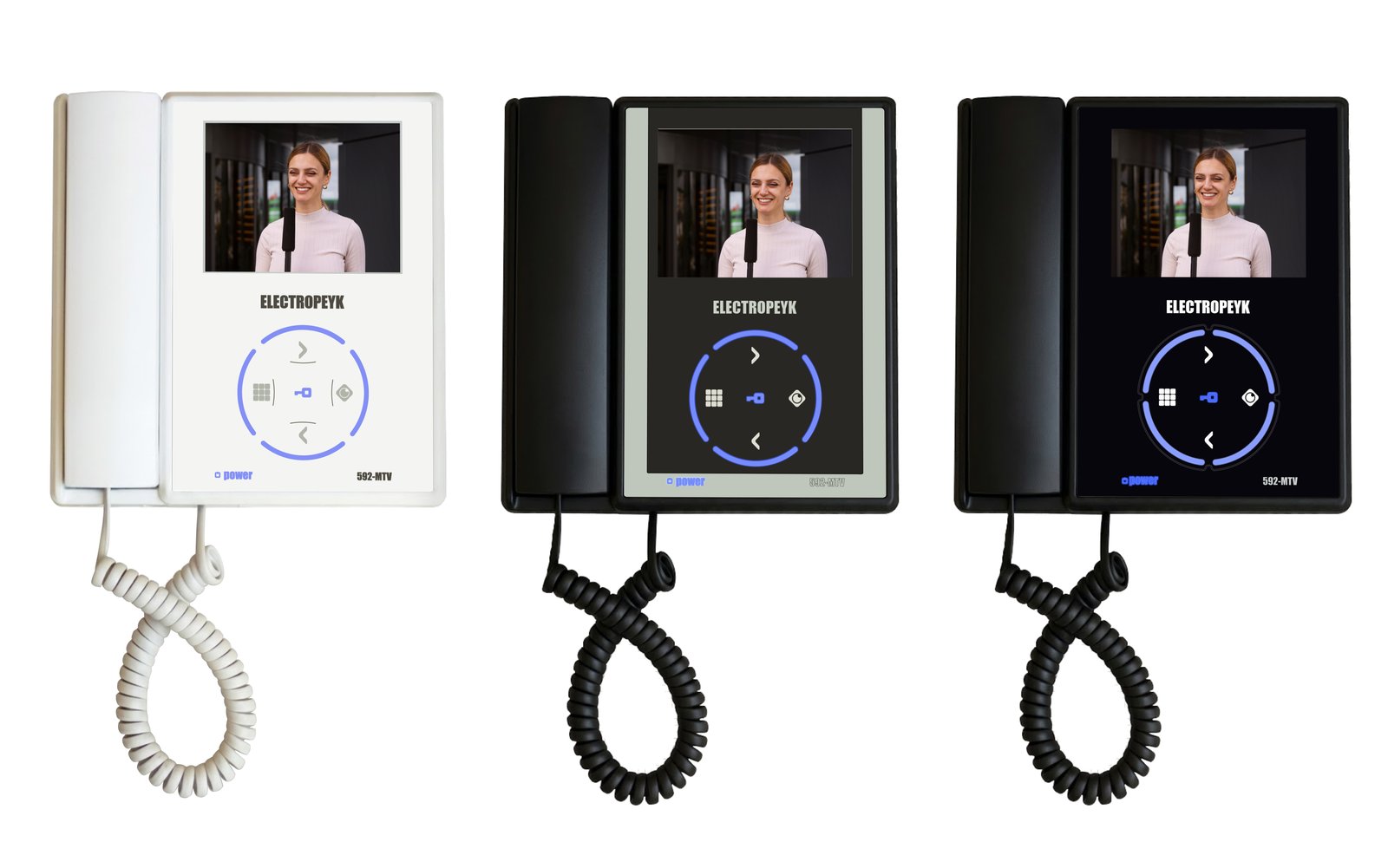

Video door phone fascia variant with a circular navigation ring, in white, black with a grey panel, and black

Radial dial variant, white, black with grey panel, black

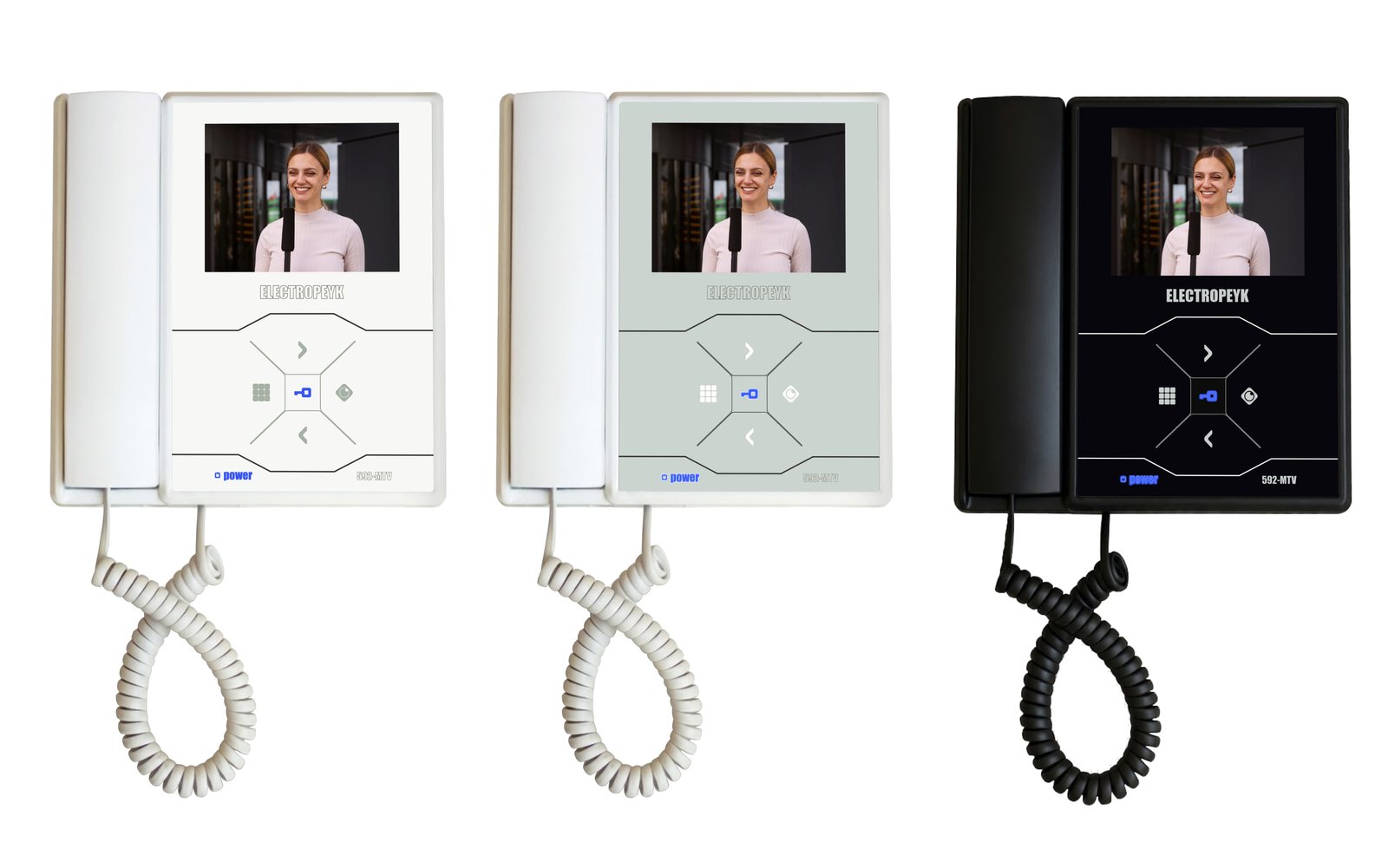

Video door phone fascia variant with a diamond-shaped button cluster, in white, grey, and black

Diamond button-cluster variant, white, grey, black

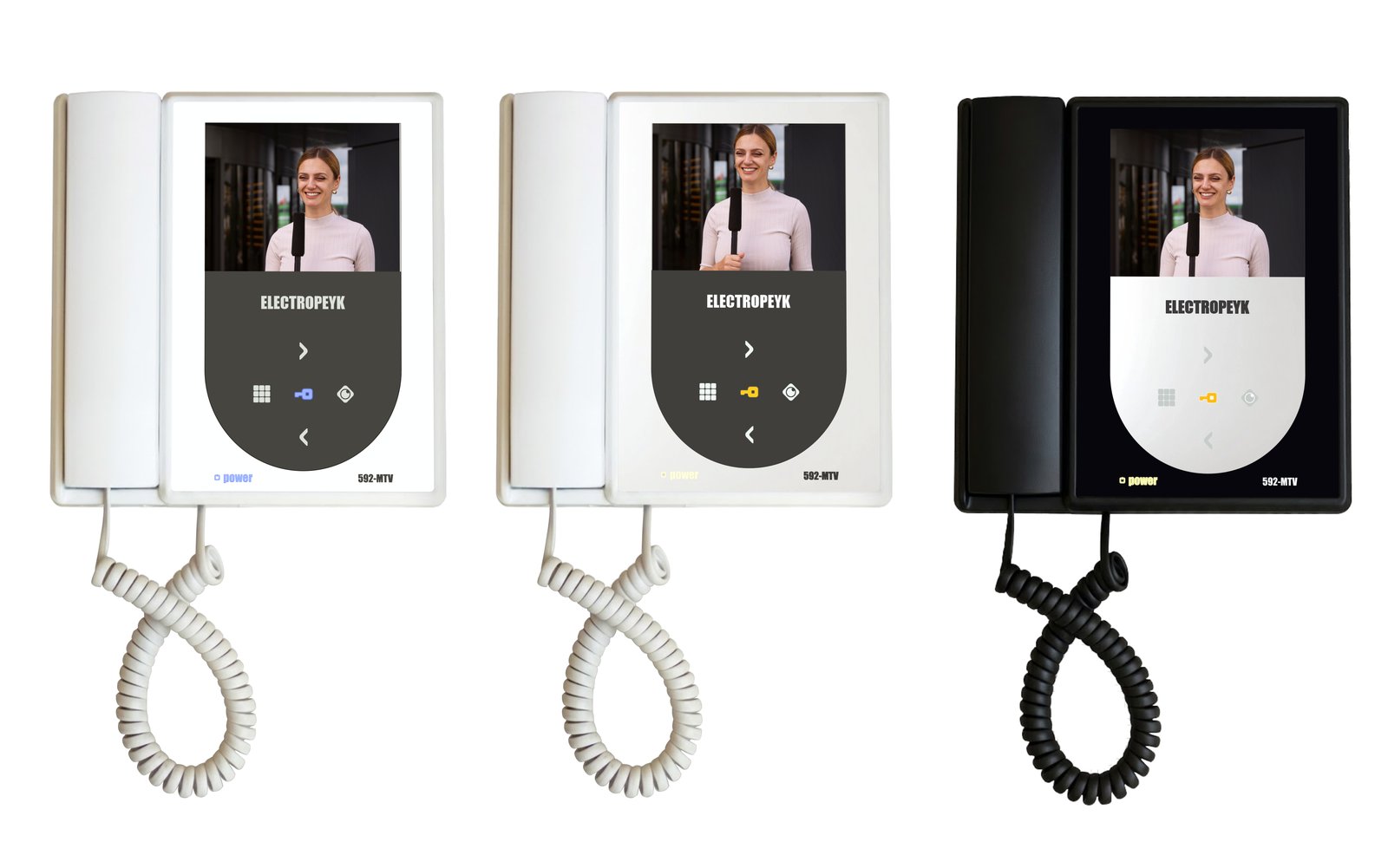

Video door phone fascia variant with a rounded shield panel framing the screen, in white, white with grey accent, and black

Shield panel variant, two-tone accent

04, Installed Comparison

White and black, side by side

A black version of the unit was already available as an option before this system, shown here installed alongside the white variant to compare how each reads on the wall.

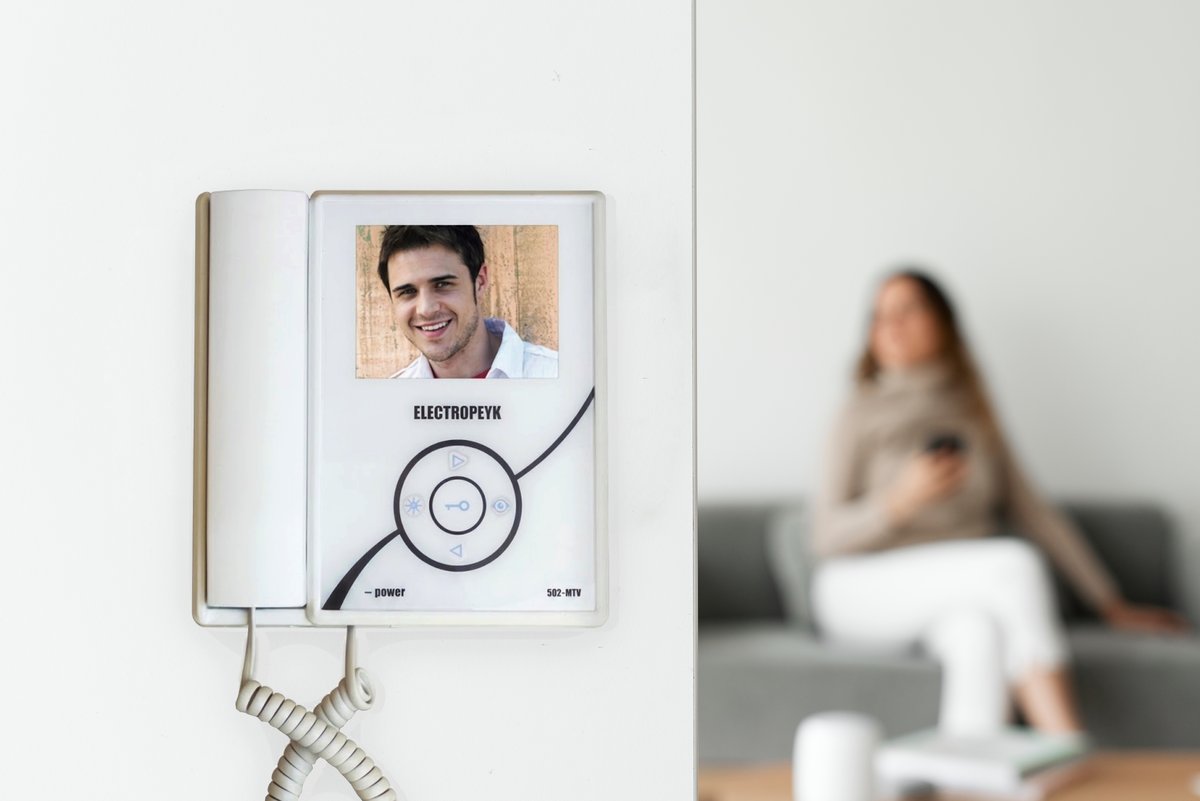

White video door phone unit installed on a wall, with a person answering in the background

White unit, installed

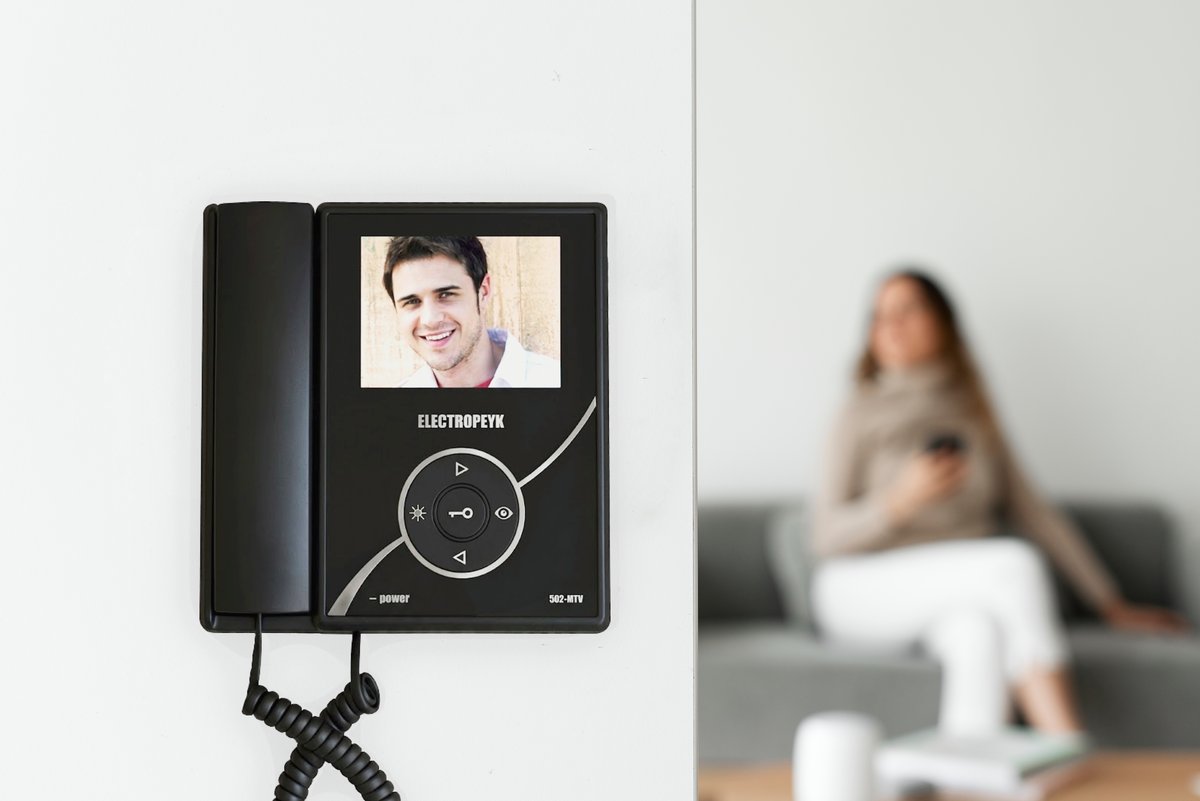

Black video door phone unit installed on a wall, with a person answering in the background

Black unit, installed

05, Prototype & Testing

Built and checked against the real unit

All fourteen variants were developed at the prototype stage and tested on production 502 MTV units at the Electropeyk facility. The prototypes confirmed fit, surface build quality, and visual consistency across body color options.

Role & Authorship

Designed during an R&D internship

The Plexiglass Variants system was designed independently as part of an R&D internship at Electropeyk, covering the fascia designs, the color and material system, and the transition from concept to tested prototype.
