Project Overview
This packaging project was developed for a multi-part coding system that included distributors, power supplies, and other installation components. Because many packages shared similar sizes and structures, installers often selected the wrong part on site — leading to delays, repeated trips, and reinstallation work.
The packaging system was redesigned to improve rapid recognition, clear differentiation between parts, and better guidance during installation. It was conceived not only for branding and retail presentation, but to reduce errors and support speed, clarity, and confidence during on-site work.
Design Challenge
- Several components looked very similar in storage and on site — same size boxes, same dark graphic style
- Installers often selected the wrong unit during installation, causing costly return trips
- Missing or lost manuals slowed work and increased stress on site
- The packaging needed to stay consistent with Electropeyk branding while helping installers quickly recognize each part at a glance
Design Response
To reduce confusion, a simple colour-coded edge system was introduced using narrow coloured lines — red, blue, yellow, green — to distinguish different product types at a glance. The box bottoms were used to display key installation connection diagrams, so installers could quickly access guidance without searching for the manual.
The Five Products
Each of the five packaging designs follows the shared system logic while using its own colour signal and product-specific content. Select a product to explore.

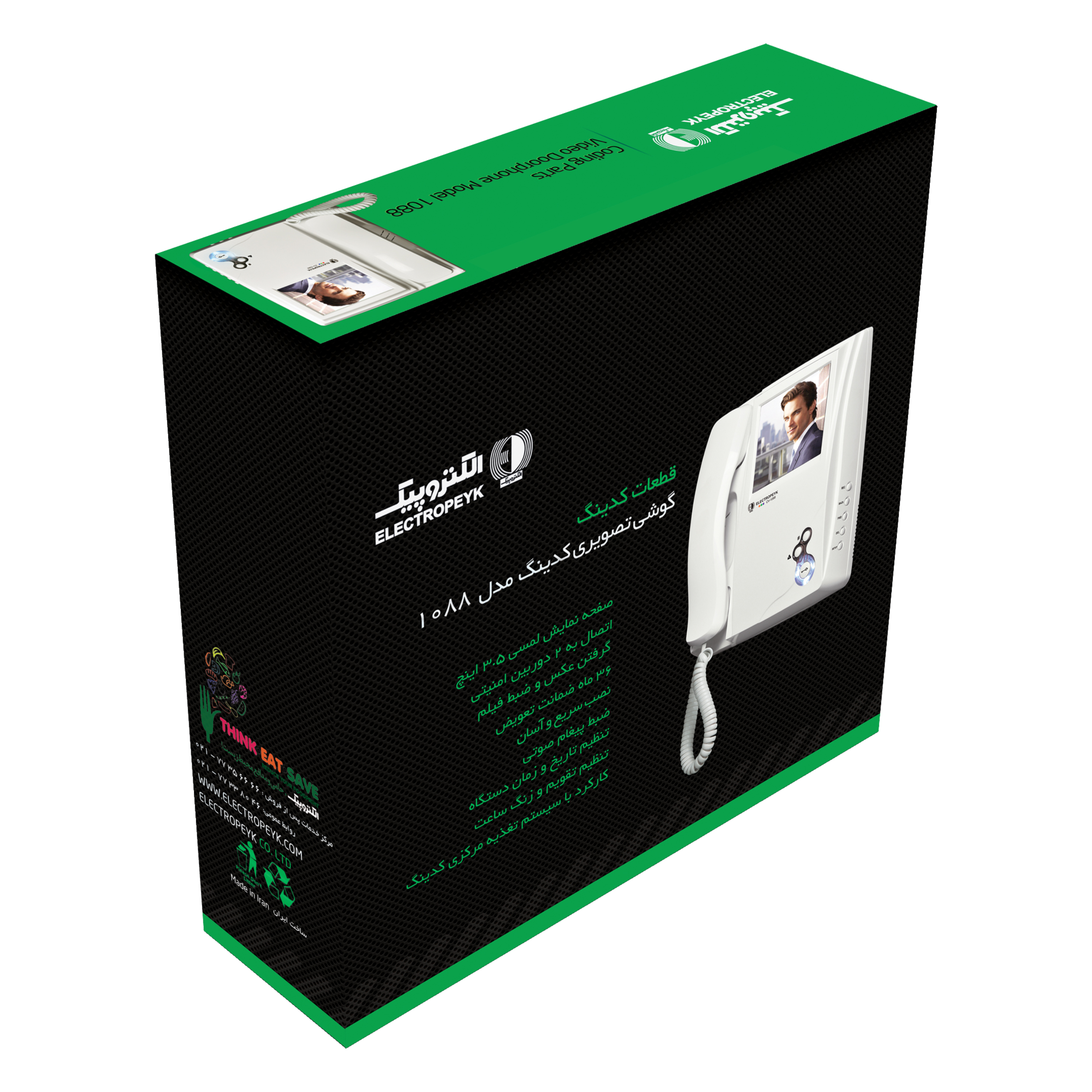

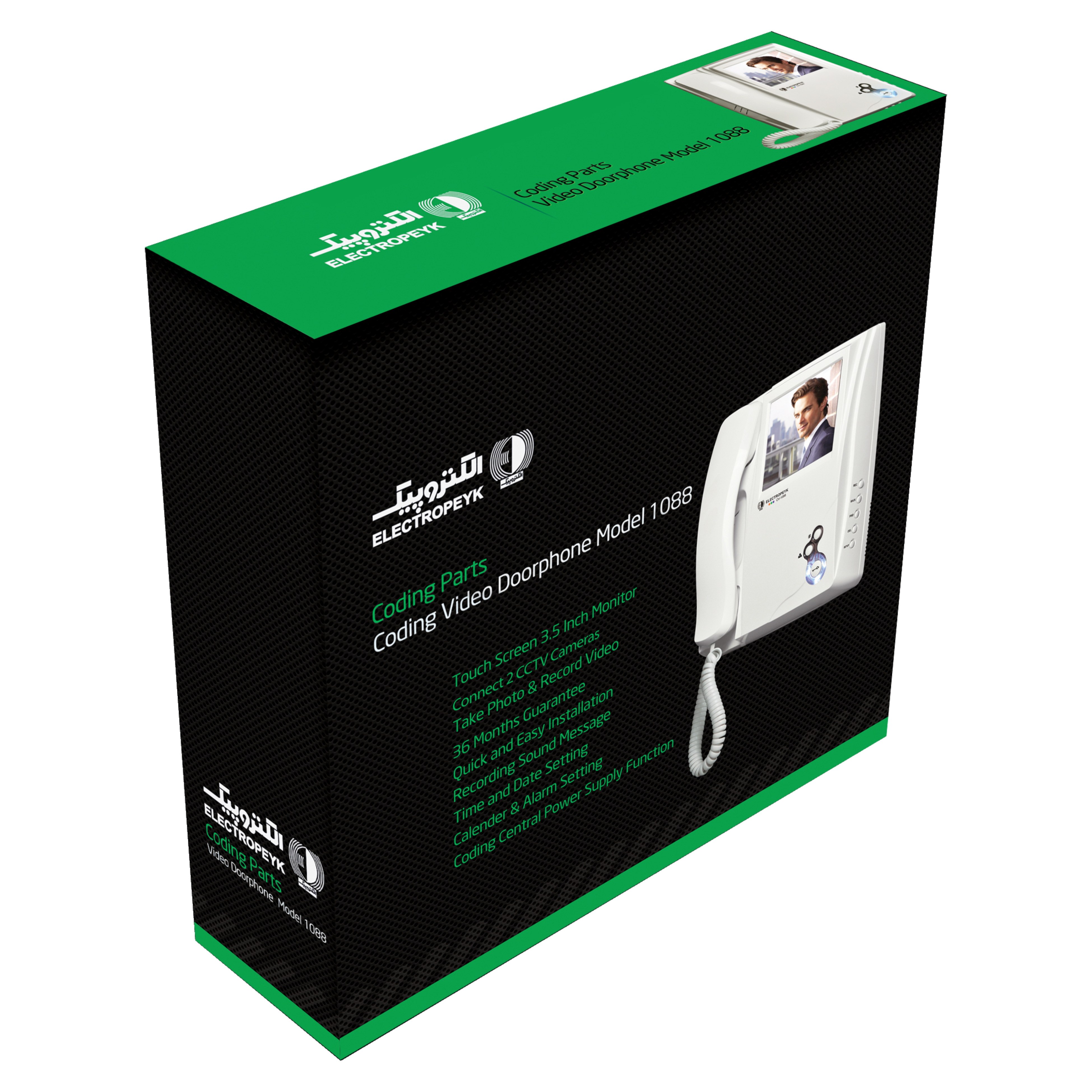

↑ Coding Parts — Video Doorphone Model 1088 · green edge · dieline
| Edge colour | Green |
| Screen | Touch Screen 3.5 Inch Monitor |
| Cameras | Connect 2 CCTV Cameras |
| Storage | Take Photo & Record Video |
| Guarantee | 36 Months |

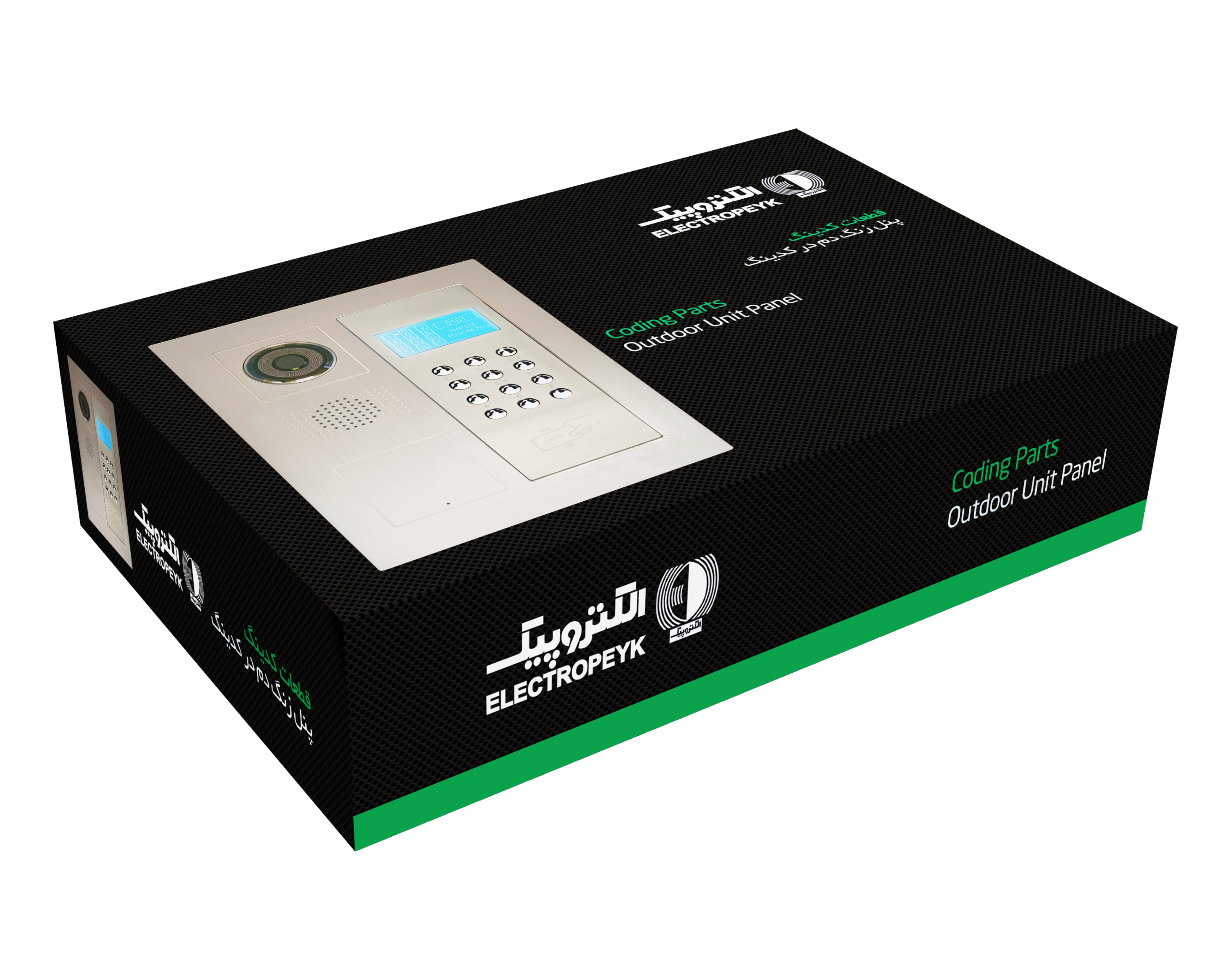

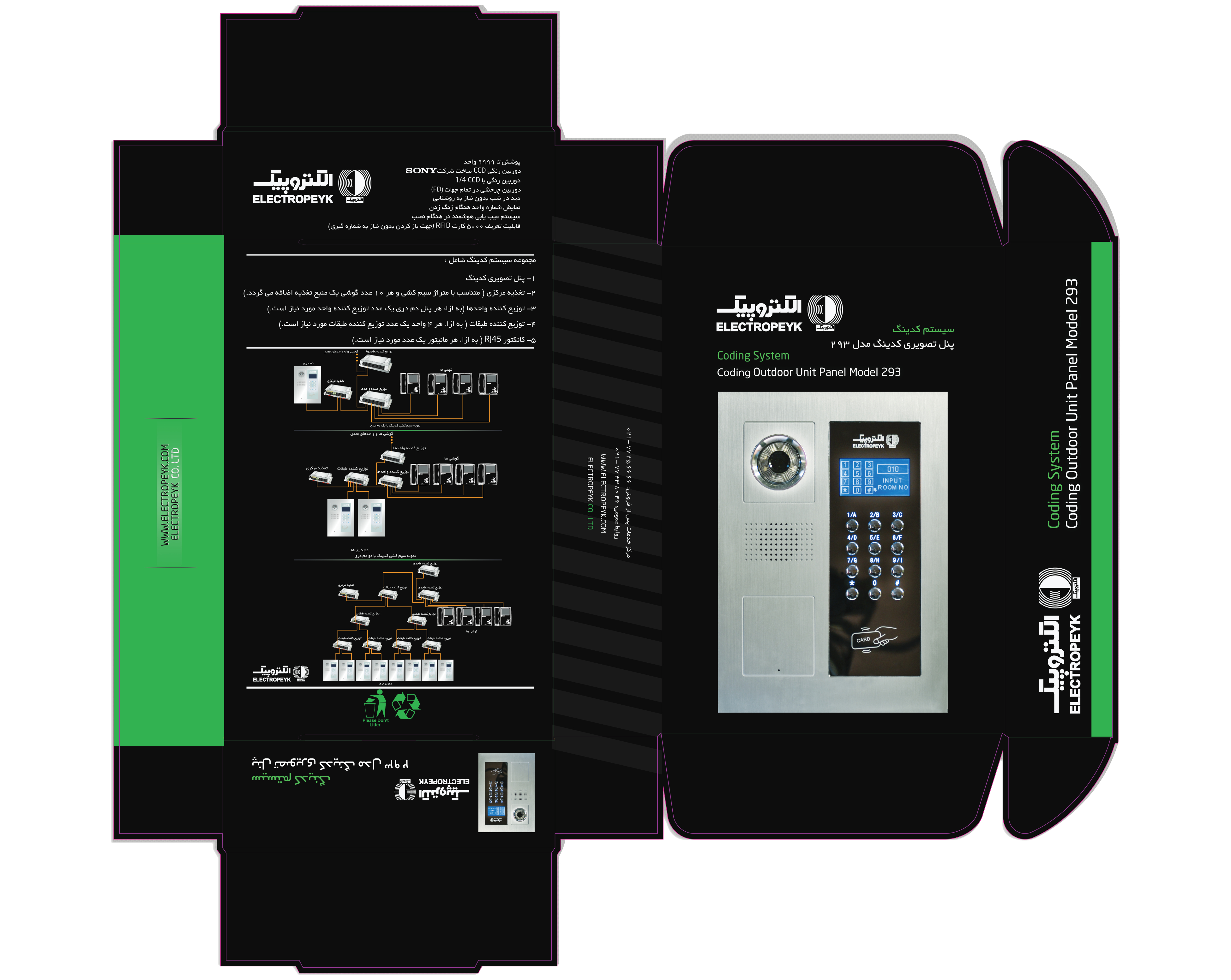

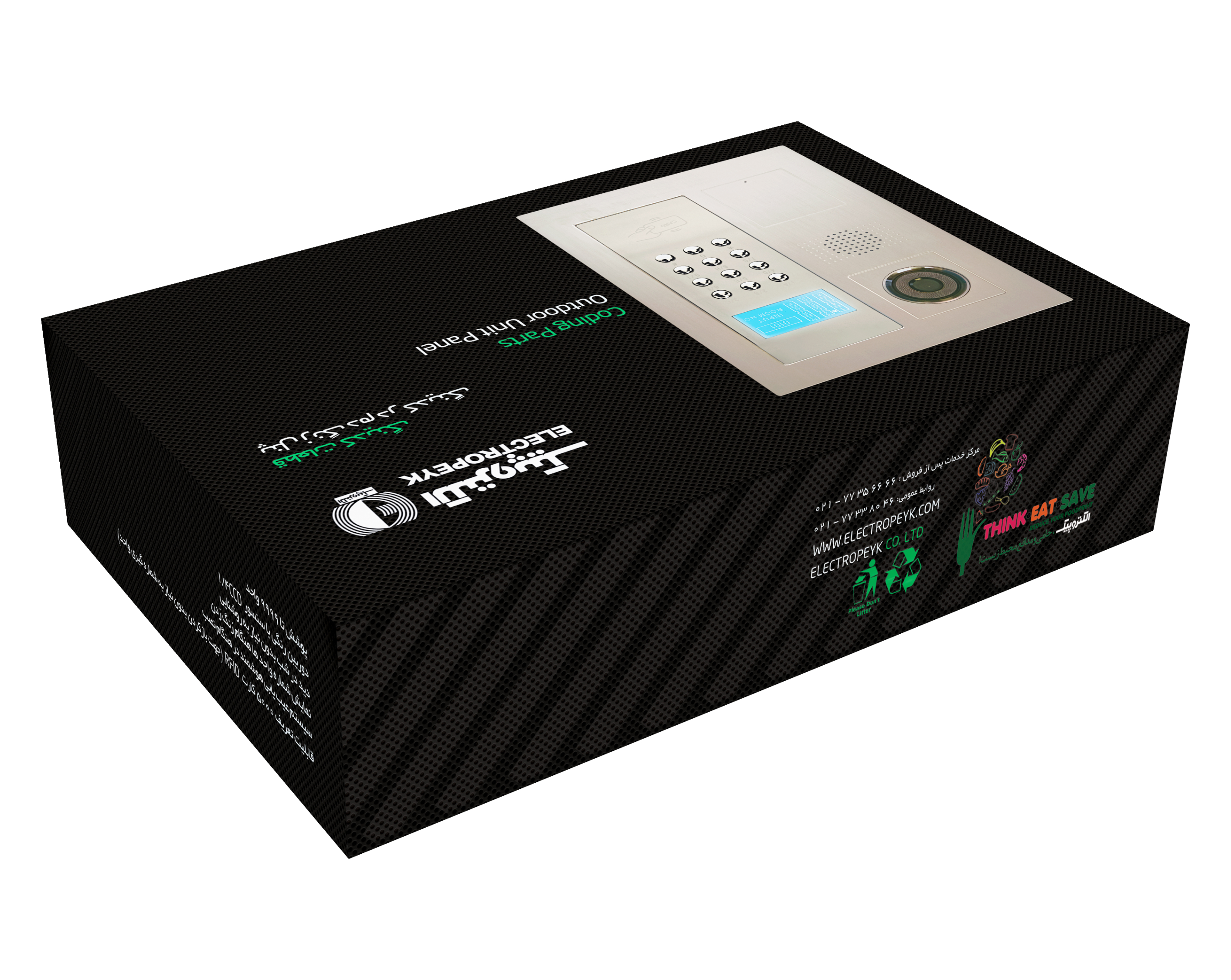

↑ Coding Parts — Outdoor Unit Panel Model 293 · green edge · dieline
| Edge colour | Green |
| Coverage | Up to 9,999 units |
| Camera | Sony CCD, 1/4 CCD |
| RFID | 500,000 cards, no address needed |
| Smart system | Electropeyk Coding system only |

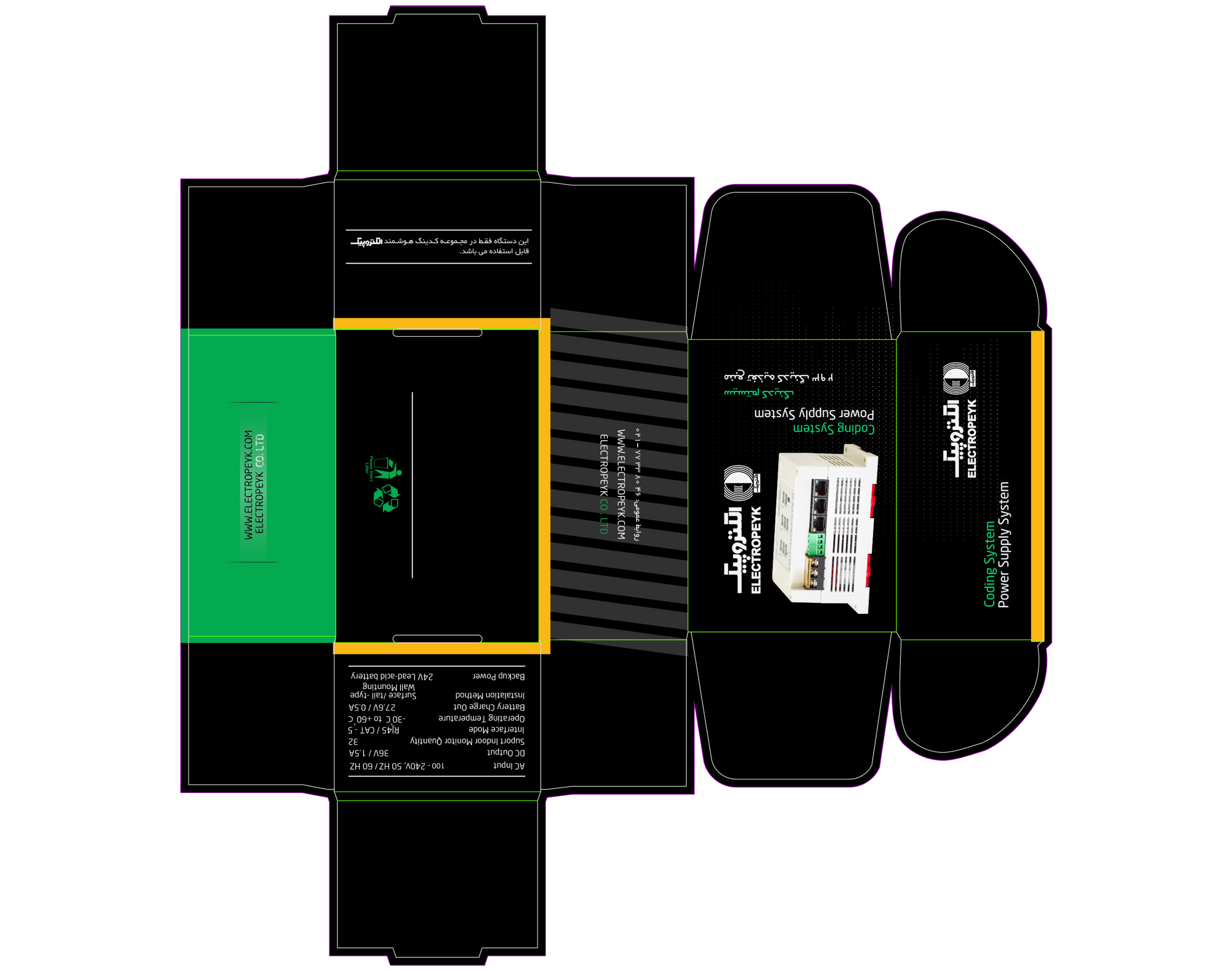

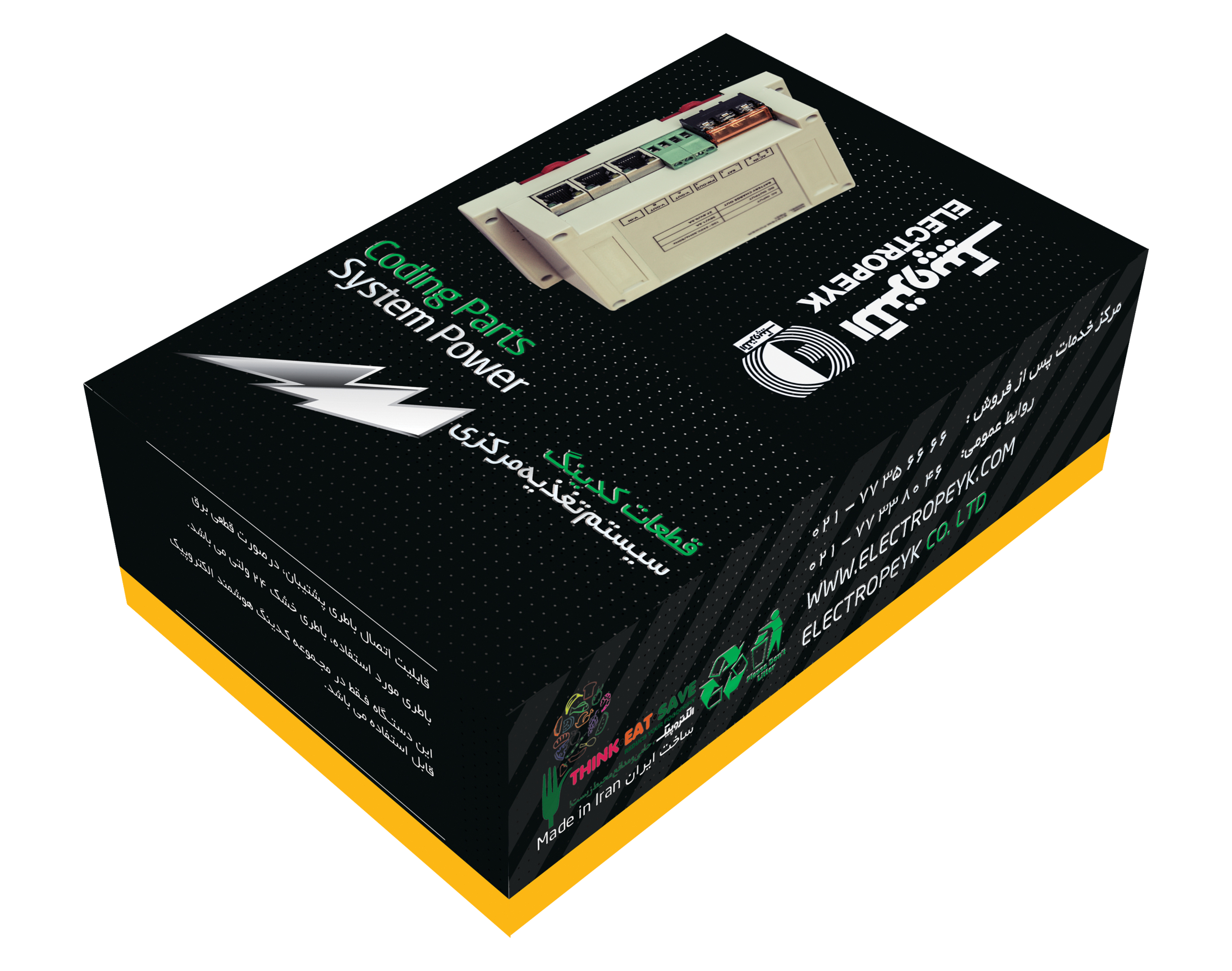

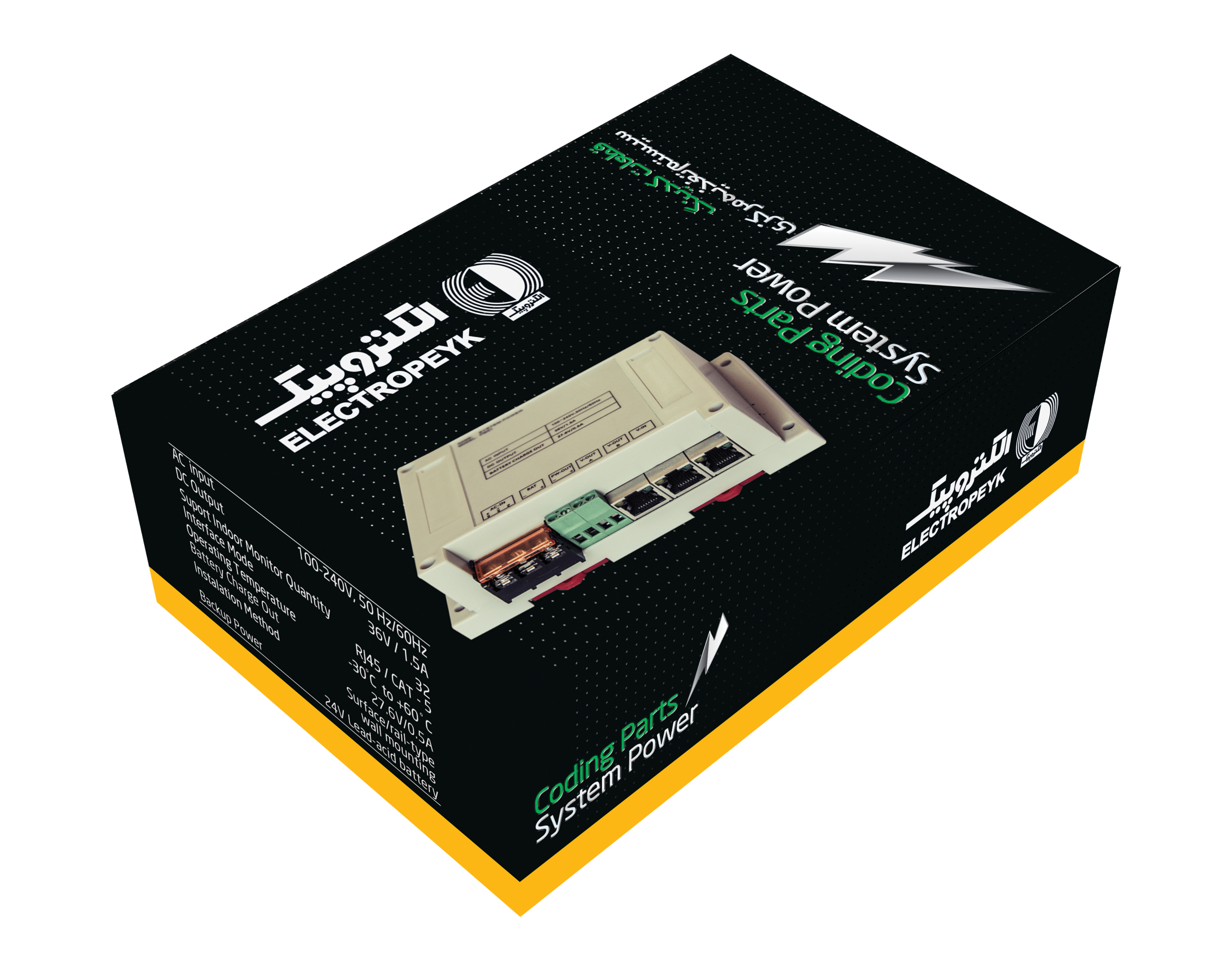

↑ Coding Parts — System Power Supply · yellow edge · dieline
| Edge colour | Yellow |
| AC Input | 100–240V, 50 Hz/60 Hz |
| DC Output | 36V / 1.5A |
| Interface | RJ45 / CAT 3–2 |
| Backup | 24V Lead-acid battery |
| Temp range | -30°C to +60°C |

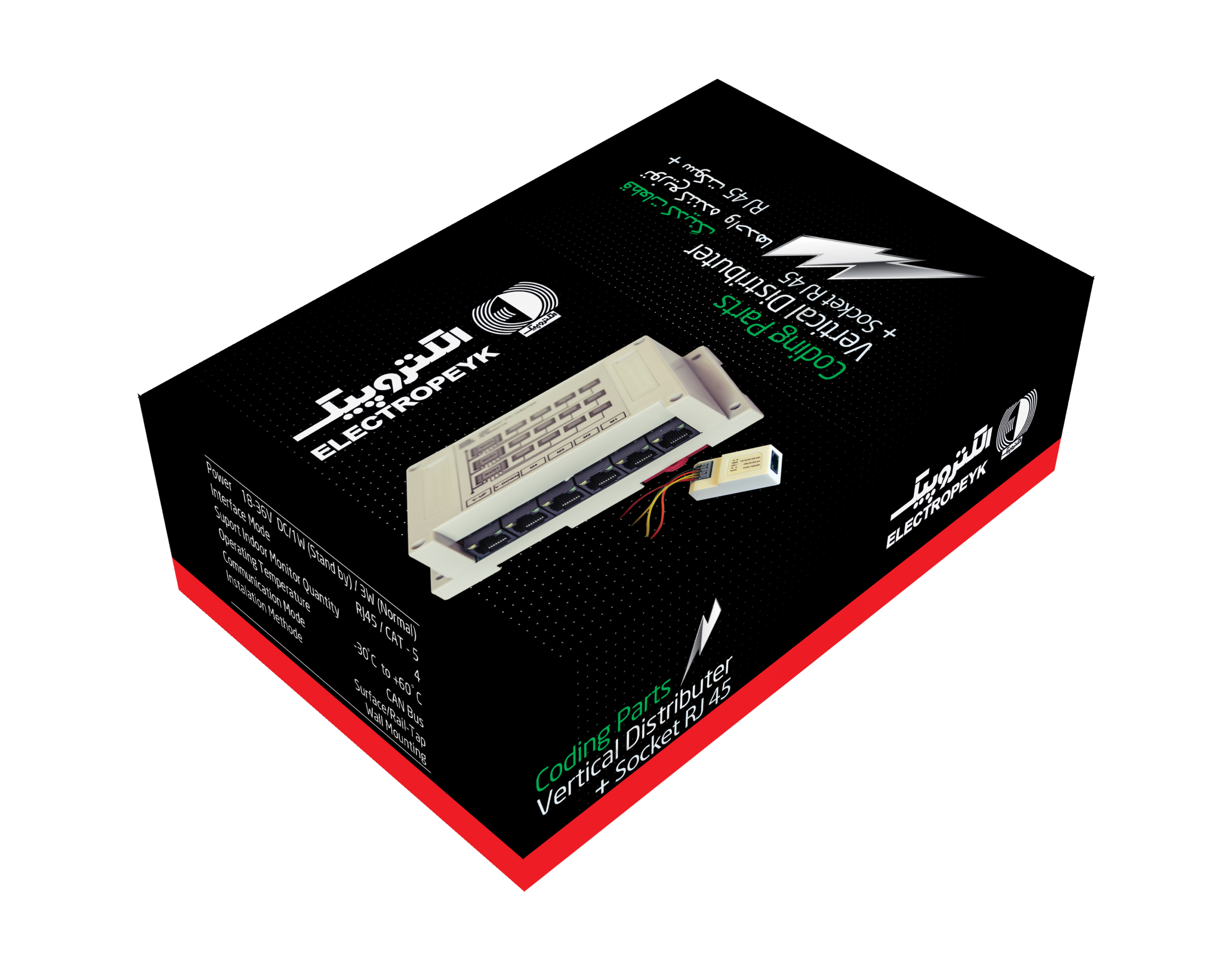

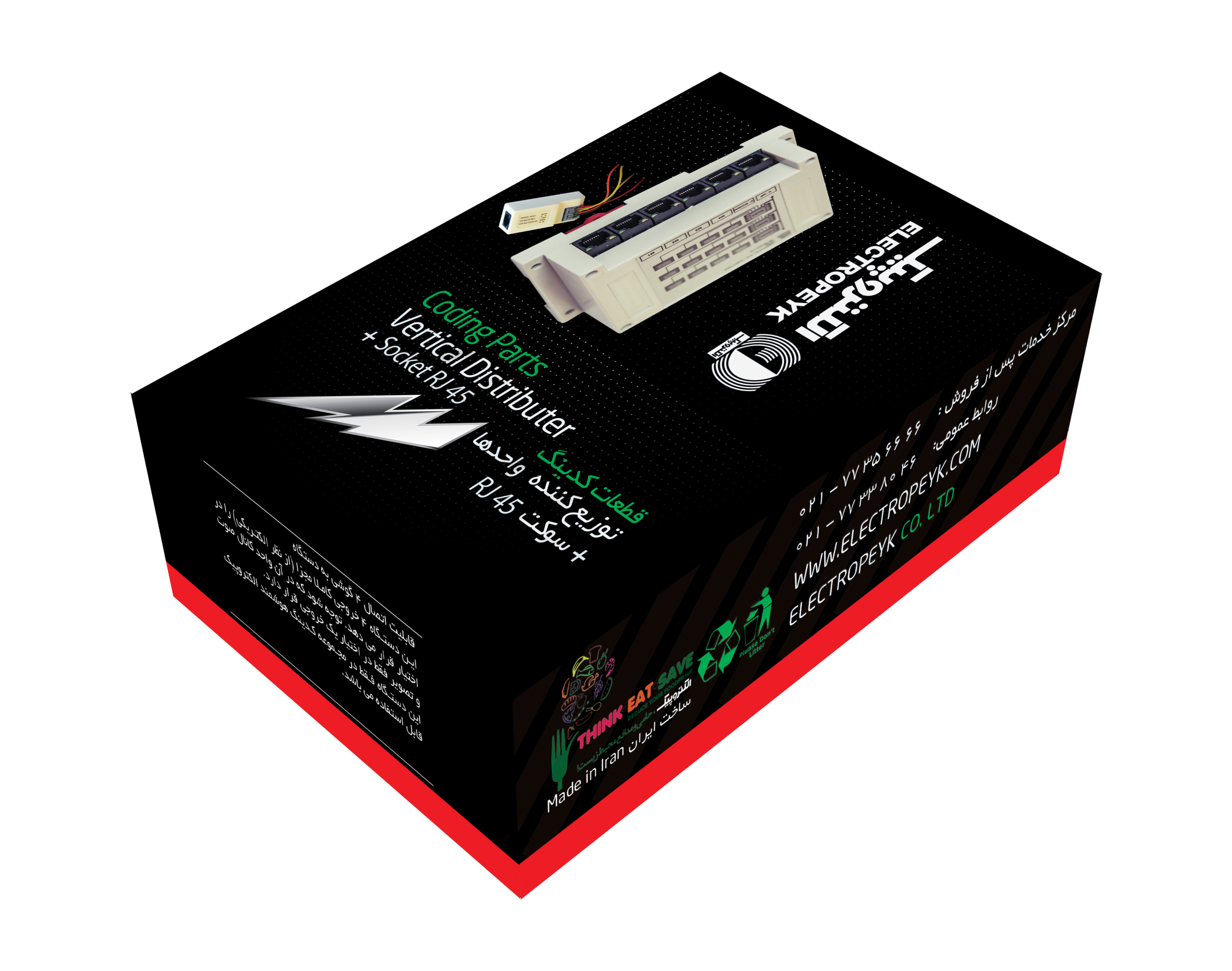

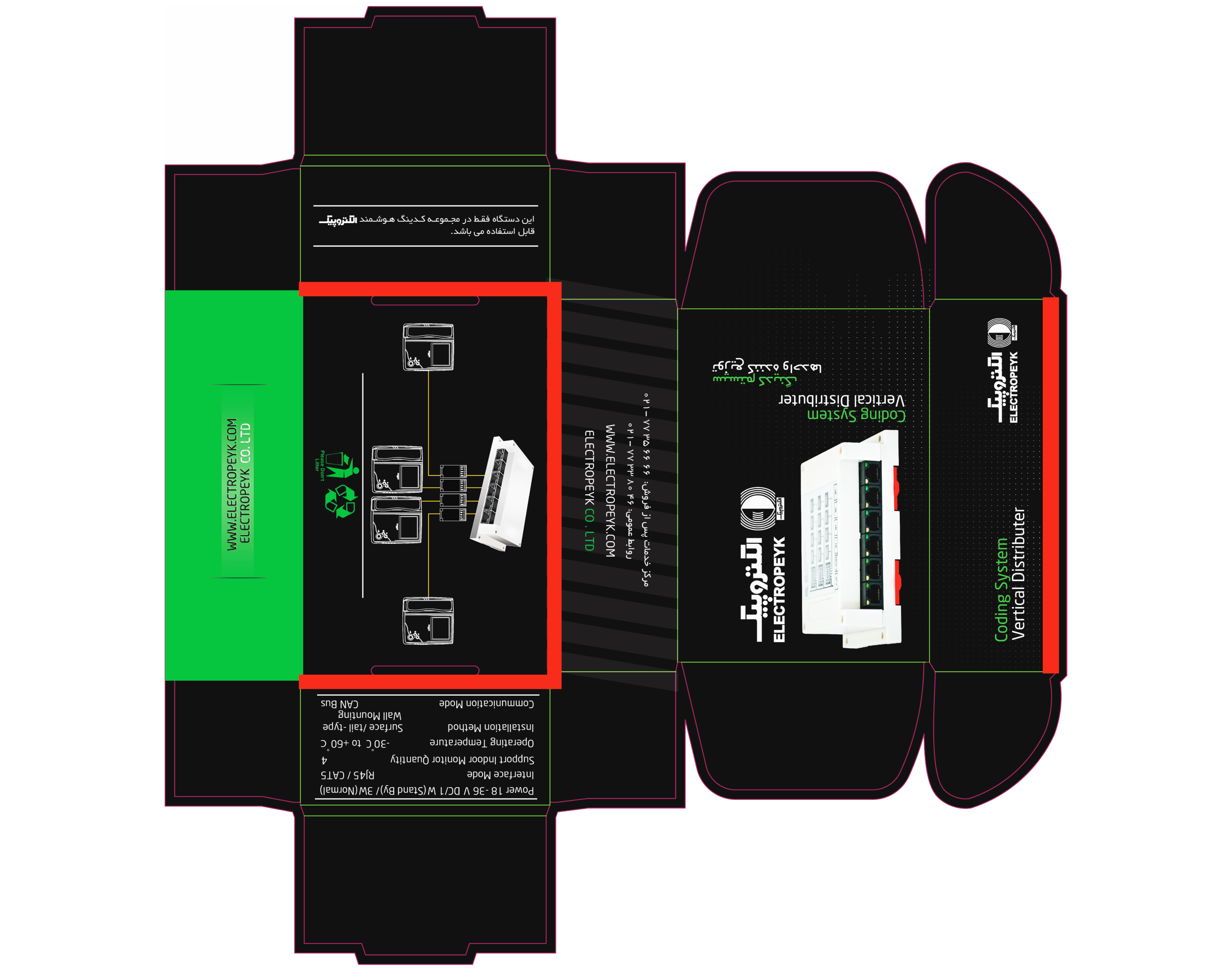

↑ Coding Parts — Vertical Distributor + Socket RJ45 · red edge · dieline
| Edge colour | Red |
| Power | 18–36V DC / 1W standby / 3W normal |
| Interface | RJ45 / CAT-5 |
| Monitor qty | Supports up to 4 indoor monitors |
| Communication | CAN Bus |
| Installation | Surface / Rail-tap / Wall Mounting |

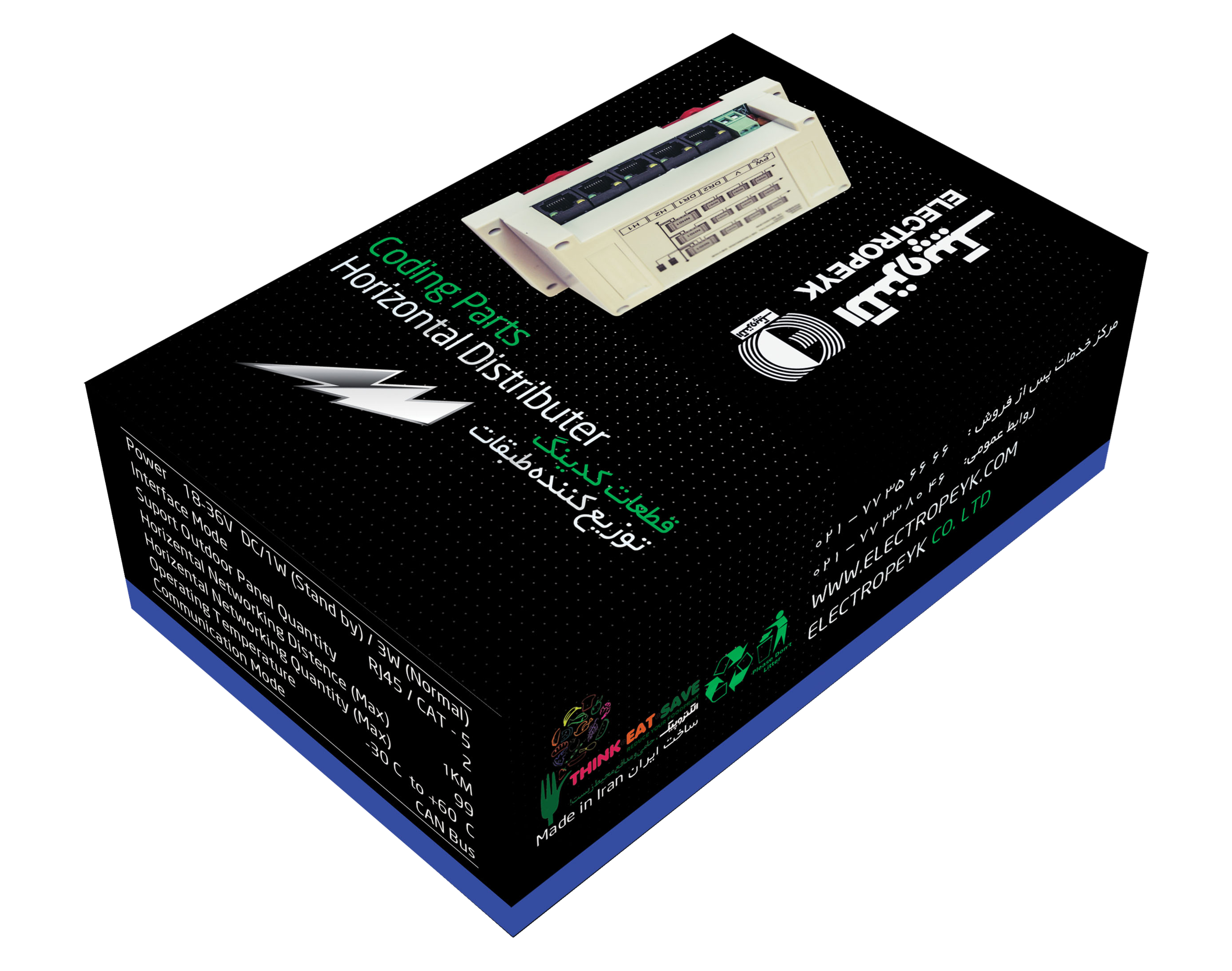

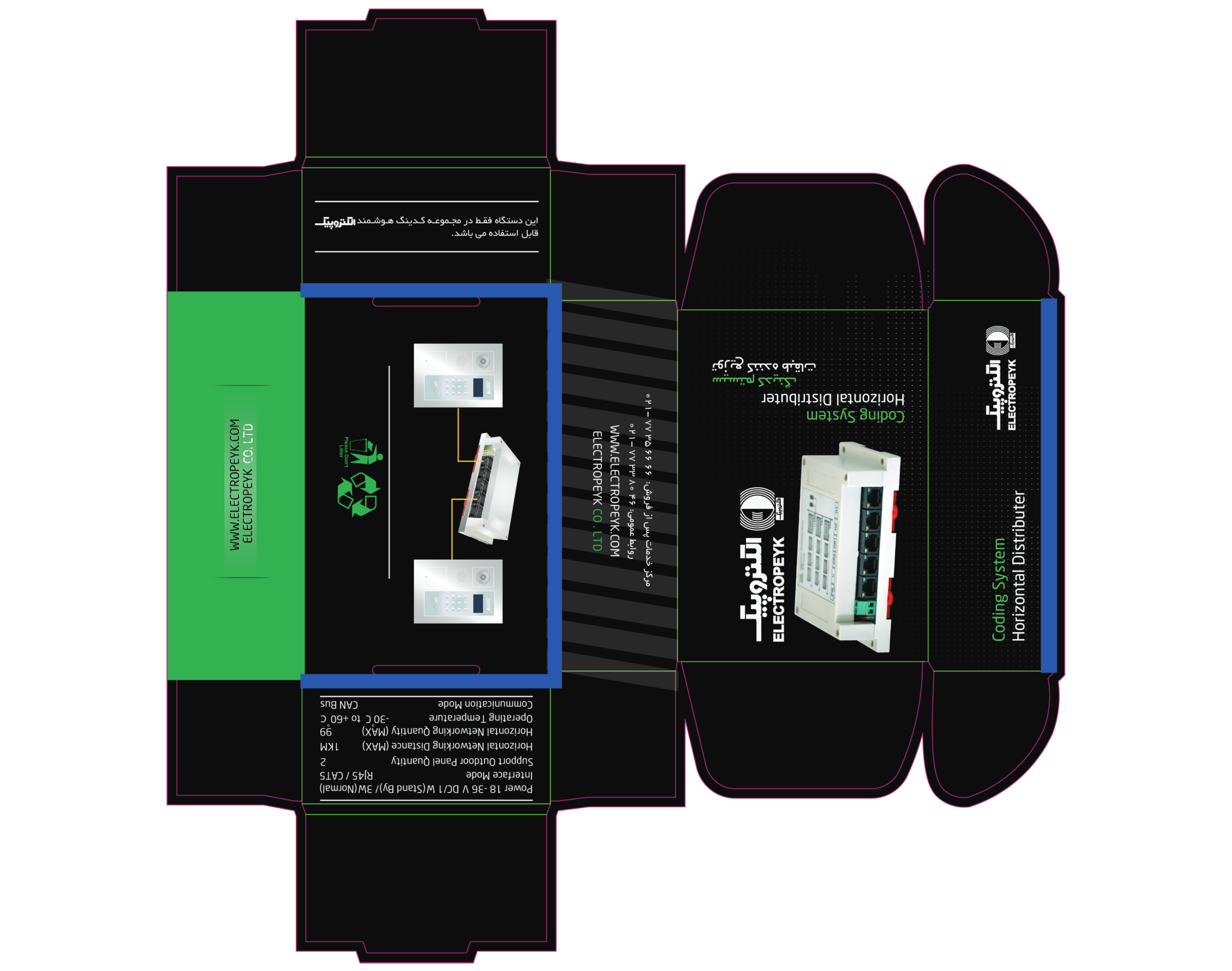

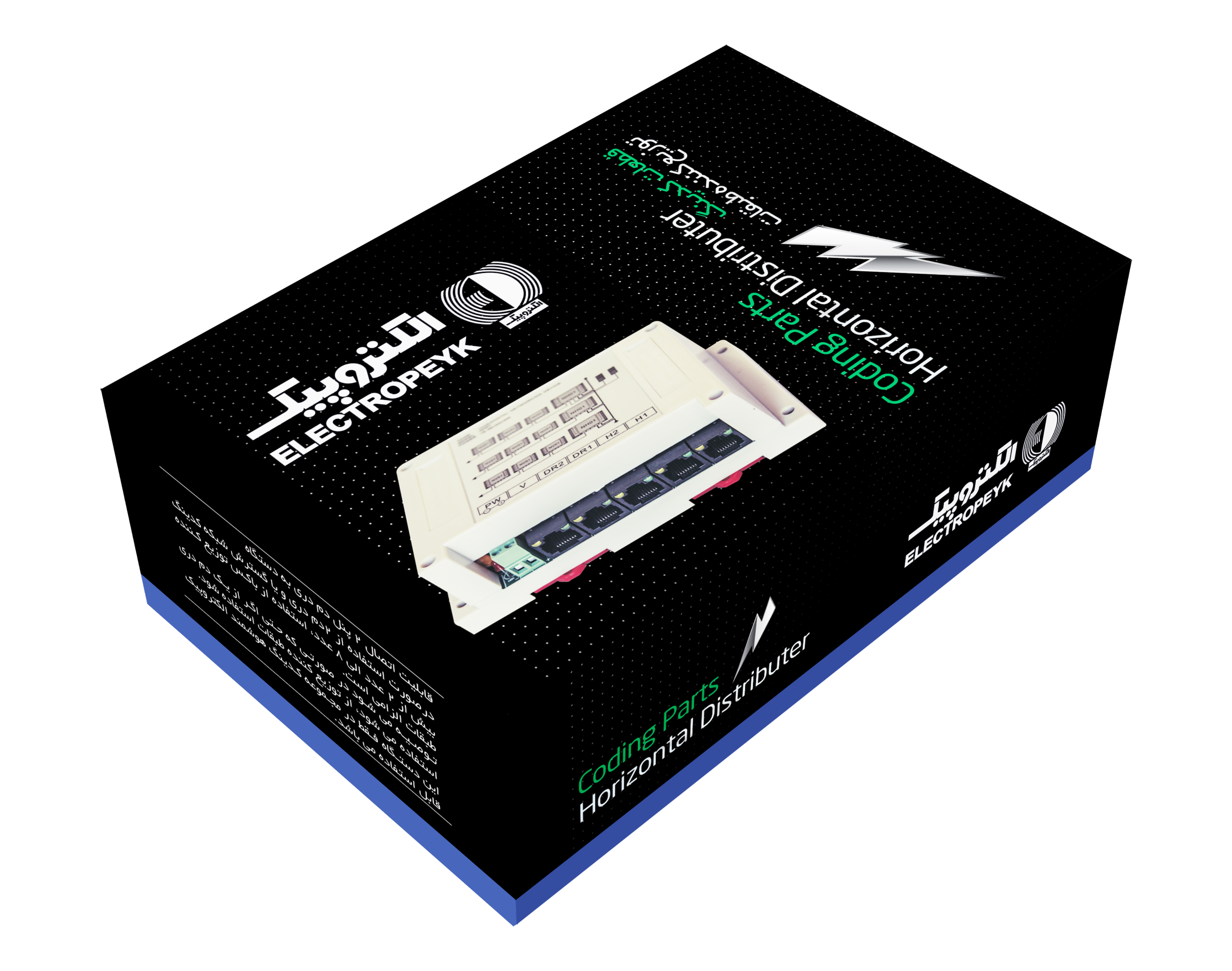

↑ Coding Parts — Horizontal Distributor · blue edge · dieline
| Edge colour | Blue |
| Power | 18–36V DC / 1W standby / 3W normal |
| Interface | RJ45 / CAT-5 |
| Network qty | Up to 99 units (max) |
| Distance | Up to 1 km |
| Communication | CAN Bus |
System Coherence
Across all five packaging variants, the shared visual language holds: the dark dot-textured base, the ELECTROPEYK logotype treatment, the green product name typography, and the large component photography on the primary face. What changes is the coloured stripe — the one signal an installer needs at arm's length in a storage van or on a wall of similar boxes.
The bottom of each box carries the system wiring diagram specific to that component — its installation context printed where it will actually be read, during the job, not before it.
